German study shows dark-field chest x-ray differentiates lung disease

2022 08 22 15 52 3552 2022 08 22 Dark Field X Ray Emphysema Case 20220822150624

Investigators say that their prototype dark-field chest x-ray system may be able to help differentiate between emphysema and fibrosis, as discussed in a case published on 18 August in Radiology: Cardiothoracic Imaging.

An 83-year-old man presented recently at their hospital with combined pulmonary fibrosis and emphysema (CPFE), wrote first authors Dr. Florian Gassert of the diagnostic and interventional radiology department at the Technical University of Munich, and physicist Theresa Urban.

A chest CT scan showed advanced upper lung mixed centrilobular and paraseptal emphysema and lower lung-predominant peripheral fibrotic changes with honeycombing, indicating an interstitial pneumonia pattern. In addition, pulmonary function tests showed combined obstructive to forced vital capacity and restrictive lung changes, with impaired lung diffusion capacity.

The researchers used the prototype system to acquire both a dark-field chest x-ray image and a conventional attenuation-based chest x-ray image of the patient in a single scan.

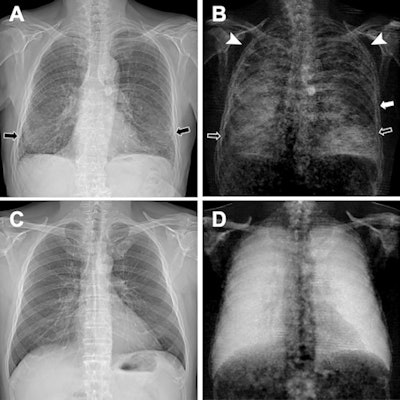

Figure 2: (A, C) Conventional attenuation-based chest x-rays and (B, D) dark-field chest x-rays in an 83-year-old man diagnosed with combined pulmonary fibrosis and emphysema (upper row) and a healthy 33-year-old man (lower row). Image courtesy of Radiology: Cardiothoracic Imaging.Figure 2: (A, C) Conventional attenuation-based chest x-rays and (B, D) dark-field chest x-rays in an 83-year-old man diagnosed with combined pulmonary fibrosis and emphysema (upper row) and a healthy 33-year-old man (lower row). Image courtesy of Radiology: Cardiothoracic Imaging.

The patient (Fig 2: A, B) demonstrated substantially decreased dark-field signal in the upper lungs (left more than right), where emphysema is most severe, and inhomogeneous but decreased lower lung signal (due to presence of fibrosis) when compared with a healthy subject (Fig 2: C, D). The stronger manifestation of fibrosis in the right lower lobe compared with the left lower lobe, as was seen on CT images, corresponded well to the asymmetric reduction of dark-field signal in the lower fields with a right-sided predominance (Fig 2B), the authors wrote.

"As both fibrosis and emphysema lead to a reduction of dark-field signal -- due to a smaller number of intact alveoli -- the assignment of signal loss to one of the two pathologic conditions is hardly possible from the [dark-field chest x-ray] alone," the researchers wrote.

However, the combination of conventional and dark-field images might allow for the differentiation of emphysema and fibrosis, especially as the images are perfectly coregistered, they suggested.

While the dark-field signal appearance of fibrosis needs to be further investigated, the researchers are optimistic, given that first published studies have shown that dark-field chest x-ray allows for the qualitative and quantitative assessment of emphysema, Gassert and Urban concluded.
